PCD Blank
share:

PCD Blank

Full name: PCD Cutting tools Blank, PCD Blanks, PCD Tips

Application: Cutting tools, woodworking tools, stone engraving tools, PDC cutter for drilling, Aluminum alloy and other non-faournch tools

Range of use: Cutting, Milling, Turning, Grooving,Boring

Thickness: 1.6mm, 2.0mm, 3.2mm



Product Description

PCD Blank


PCD Blank Halnn


PCD Blank is made in the environment with high temperature and the ultrahigh pressure, made of Diamond PCD and Tungsten Carbide with bonding agent.

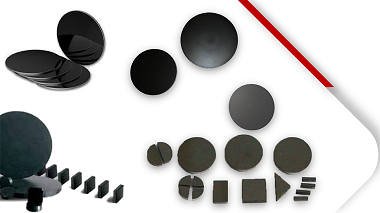

PCD Blanks consists of PCD layer solid sintered at ultrahigh pressure and high temperature to a cemented tungsten carbide backing. The standard PCD Blanks is round, also could be cut into Triangle, square, rectangle, sectors and others as drawing.

Features: High hardness, Good thermal conductivity, Excellent oxidation resistance.

Machining Mode: Roughing and finishing

Application Industry: Aluminum Alloy, Composites, CFRP, Copper, Cast iron, Stone, Granite, Graphite, ect.

Quality Assurance: we have got certificates of ISO9001, and we use advanced machine for each step processing, and have professional Quality Inspector, which will ensure each product with excellent performance and quality


Grade and Application of PCD Blank

Grade

Grain size (μm)

PCD Thickness

Total Thickness

Application

CDW005

5μm - 10μm

0.4 mm to 0.6mm

1.6mm, 2.0mm, 3.2mm

PMMA, Silicon alloy and metal phone shell outline, wood, saws industry, Engrave milling Tools and thread tool, woodworking saws, particleboard ,silicon aluminum alloy

CDW010

10μm

0.4 mm to 0.6mm

1.6mm, 2.0mm, 3.2mm

Finish for rough machining wood, molding, medium and low silicon aluminum alloy parts, Aluminum based silicon carbide

CDW025

25μm

0.4 mm to 0.6mm

1.6mm, 2.0mm, 3.2mm

High Silicon Aluminum alloy, MMC, Tungsten carbide and ceramic, graphite,wear resistant parts, Wood finishing insert and saws

CDW302

2 - 30μm

0.4 mm to 0.6mm

1.6mm, 2.0mm, 3.2mm

High silicon aluminum alloy, composite plastic, duplex metal, metal matrix composite material, ceramic, etc.



How to order PCD Blank?

Blank Specification

Diameter (D)


Thickness of Abrasive Layer (T)


Total Height (H)


Granularityµm


     Workpiece Info

Material


Request Finish(Ra/Rz)




PCD Blank PCD Disc
