High Hardness Bearing Special Inserts

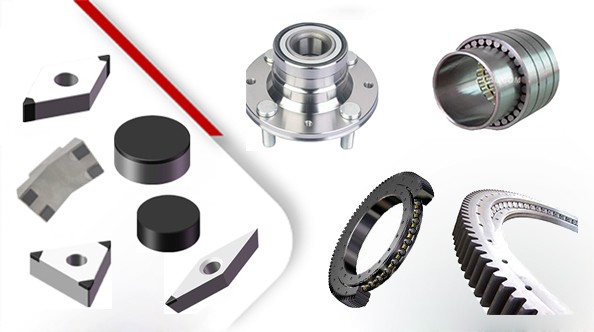

Full Name: High Hardness Bearing Special CBN/PCD Inserts

Using Inserts type: RNGN, RNMN, RCGX, RCMN, TNGA, CNGA, DNGA,WNGA, VCGW, Diamond Bearing Strut Block

Processing hardness: Above HRC45

Processing Material: Hardened Steel, High hardness Steel, bearing Steel, 42CrMo4, Powder metallurgy, Composite Materials and so on.

Processing Way: Roughing, finishing

Continuous machining, Light-interrupted machining, Interrupted machining;  Finishing, Roughing


Product Description

Hardness of Gear: Above 45HRC

Recommend inserts: PCBN Inserts, PCD Inserts, Solid CBN Inserts, Full Face solid CBN Inserts, Compound CBN Inserts

Process Continuous: Continuous machining, Light-interrupted machining, Interrupted machining;  Finishing, Roughing

Materials of Bearing: Hardened Steel, High hardness Steel, bearing Steel, 42CrMo4, Powder metallurgy, Composite Materials and so on.

Type of Bearing: Wind power bearings, industrial bearings, metallurgical bearings, wheel hub bearing units,

Bearing Industry: Wind power industry, automotive industry, transportation industry, etc.

Recommend inserts


Full Face RNGN PCBN inserts.jpg


 RNGN CBN inserts



RCMN Solid CBN inserts.jpg


RNGN CBN inserts

RNMN CBN inserts

RCMX-V CBN inserts

RCMN CBN inserts

DNGA CBN inserts

cNGA PCBN Inserts.jpg

WNGA CBN inserts

CNGA CBN inserts

TNGA CBN inserts

VCGW PCD inserts

Diamond Bearing Strut Block


Recommend Grade

Grade

Process Type

AP

Process Condition

Process Steel

BN-H200

Roughing, Finishing

1mm--10mm

 Continuous- Light Interrupt

Steel

BN-S200

Roughing, Finishing

1mm--10mm

Continuous - Light Interrupt

Steel

BN-H20

Finishing

≤1mm

Continuous - Light Interrupt

Steel

BN-H11

Finishing

≤1mm

Continuous

Steel

BN-H50

Finishing

≤0.5mm

Continuous - Light Interrupt

Steel and Powder metallurgy

BN-H05

Finishing

≤0.2mm

Continuous

Steel

BN-H10

Finishing

≤0.5mm

Continuous - Light Interrupt

Steel

BN-H21

Finishing

≤0.5mm

Interrupt - Heavy Interrupt

Steel

BN-H05 C25

Finishing

≤0.2mm

Continuous

Steel

BN-H10 C25

Finishing

≤0.5mm

Continuous - Light Interrupt

Steel

BN-H21 C25

Finishing

≤0.5mm

Light Interrupt - Heavy Interrupt

Steel

CDW010

Finishing

≤0.2mm

Continuous

Composite Materials



Recommend Process Parameter

Process Materials

Process Parameter

Process Condition

Vcm/min

Apmm

Frmm/r

High Hardness Steel

50-150

1mm--10mm

0.1-0.5

Roughing

90-250

≤1

0.05-0.35

Finishing



Processing case

Process Wind power bearing

CBN inserts machining Out ring rib.JPG

Processing part: Wind power bearing, outer ring rib

Processing size: 2750mm

Material and Hardness: 42CrMo4, HRC58-63

Surface Roughness requirements: Ra 0.4

InsertsBN-H200 RNMN090300

Machining wayRoughing and Finishing

Machining parameterVc=190m/min Fr=0.32mm/r, Ap=1-1.5mm, S=25r/min


Workpiece: Wind Power Bearings

Materials: 42CrMo, HRC58~62,

Process Way: Semi-Interrupt turning

Selected Insert: BN-H10 RNGN090300

Cutting Condition:dry cutting

Process parameter: Ap=1mm(Roughing), Ap=0.15mm(Finishing)

Fr=0.45mm/r, Vc=145m/min

2 CBN Inserts machining Wind Power Bearings.JPG

Insert Materials

Cutting Speed

Tool Life

Efficiency

Halnn BN-H10

145m/min

3pcs

Improve 20%

Other Brand

120m/min

2pcs

----


Processing Hub bearing unit bore and raceway

CBN turning Bearing unit.jpg

Component: Hub bearing unit bore and raceway

Hardness: HRC58~62

InsertsBN-H50C25VNGA160408

Process parameter: Vc=208m/min,  Fr=0.15mm/r,  Ap=0.23mm

Roughness: ≤Ra0.6

Tools life: 52Pcs

After coating, the smooth coating will combine with the cbn perfectly, which can obtain excellent cutting performance, improve the precision and the tool life comparing with the cbn insert without coating



Processing powder metallurgy bearings

Workpiece: Metallurgical Bearing

CBN inserts process metallurgical Bearing.jpg

Materials: Powder metallurgy, HRC62

Processing part: bearing outer circle and inner hole

Selected Insert: BN-H11 DNGA150408

Processing method: dry cutting

Cutting parameters: Vc=140m/min, Fr=0.12mm/r, Ap=2.5mm

Brand

Cutting Speed

Tools life

Roughness

Halnn BN-H11

140m/min

12 pcs/tip

Ra0.8

Other brand CBN

140m/min

10 pcs/tip

Ra0.8



Process Composite materials Bearing/Sleeve

Composite bearings consist of sliding layers made of polymers such as polytetrafluoroethylene (PTFE). Effectively solve the vibration and noise of the steering wheel of the car when the car is driving. During installation, composite bearings help compensate for mating component tolerances, without the need for expensive precision ground surfaces on the shaft.

PCD Tools machining Composite bearing and sleeve.JPG

Workpiece: Composite bearing/sleeve

Materials: High Hardness Composite Materials

Selected Insert: CDW010 VCGW 160408

CDW010 is made of general-purpose PCD Grade, which takes into account good toughness and high wear resistance; if you need better wear resistance, you can choose CDW025 and CDW302 materials, which have good edge strength and edge quality.
