PDC Cutter

The Full Name: PDC cutter for chain saw, PCD Cutter, Diamond Cutter, Diamond Chain saw inserts, Diamond Cutter, Diamond Chain Saw Cutter

Machining Materials: High hardness stone, Granite, Marble, Mining

Machine: Chain Saw machine



Product Description

Product Description of PDC Cutter

Polycrystalline diamond compact (PDC) cutter is one kind of newly functional material,which is composed of PCD top layer and cemented carbide substrate,it can be sintered based on advanced processing technique,Its main features are high hardness,high wear resistance and thermal conductivity of diamond,It also has the strength and impact toughness of cemented carbide. It is an ideal newly material for manufacturing cutting tools,drilling bits and other wear-resistant tools.

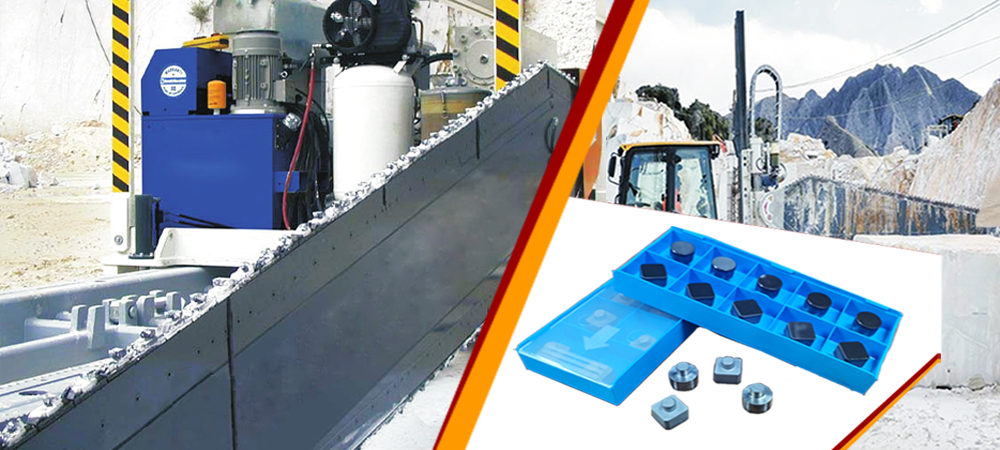

Halnn PDC cutter for chain saw


Advantage of Halnn PDC Cutter

(1) Professional testing equipment detects each piece of PDC Cutter

(2) Hot-selling products that can be shipped to you quickly.

(3) High-quality diamond raw materials, Unique formula. the abrasion resistance and impact resistance of the PDC Cutter are combined more perfectly.

(4) New stable and efficient material for marble mining

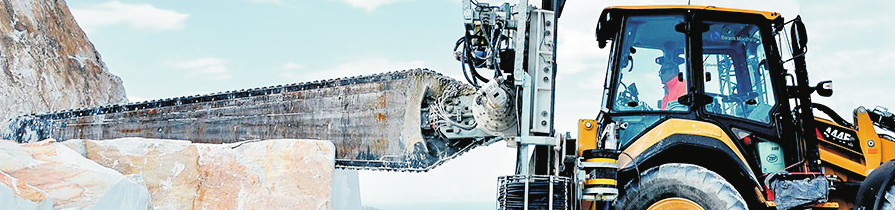

As a new material industry demonstration enterprise in Henan Province, for marble mining, Halnn superhard PCD chain saw Cutter have both wear resistance and impact resistance.


Specifications of PCD Cutter


Drawing

Type

 Type

Size/mm

L

S

φd

Halnn S PCD Cutter 1308 1304.JPG

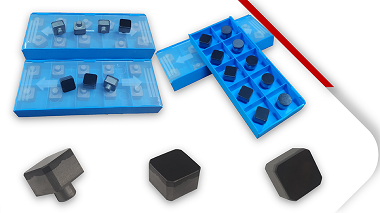

Square PDC Cutter

S0808

8 mm

8 mm

——

S1008

10 mm

5 mm

——

S1308

10 mm

8 mm

——

S1313

13.3 mm

13.2 mm

——

S1613

16 mm

13.2 mm

——

Halnn Sq PCD Cutter 1308 1304 with tail.jpg

Square PDC Cutter with Tail

S0808-04

8 mm

8 mm

4 mm

S1008-04

10 mm

5 mm

4 mm

S1308-04

10 mm

8 mm

4 mm

S1613-04

16 mm

13.2 mm

4 mm

S1613-06

16 mm

13.2 mm

6 mm

S······

··

··

··


Drawing

Type

Type

Size/mm

Φl.C

S

φd

Halnn PCD Cutter 1308 1304.JPG

Round PDC Cutter

R0805

8 mm

5 mm

——

R0808

8 mm

8 mm

——

R1005

10 mm

5 mm

——

R1008

10 mm

8 mm

——

R1304

13.3 mm

4.5 mm

——

R1305

13.3 mm

5 mm

——

R1308

13.4 mm

8 mm

——

R1313

13.4 mm

13.2 mm

——

R1613

16 mm

13.2 mm

——

Halnn S PCD Cutter 1308 1304 with tail.jpg

Round PDC Cutter with Tail

R0808-04

8 mm

8 mm

4 mm

R0808-06

8 mm

8 mm

6 mm

R1008-04

10 mm

8 mm

4 mm

R1008-06

10 mm

8 mm

6 mm

R1308-04

13.4 mm

8 mm

4 mm

R1308-06

13.4 mm

8 mm

6 mm

R1313-04

13.4 mm

13.2 mm

4 mm

R1313-06

13.4 mm

13.2 mm

6 mm

Noteother sizes are available to be customized.


Halnn Superhard Materials is a well-known brand in superhard material and application, devoted to offering comprehensive solutions to global customers. With the background of Henan Research Institute of Superhard Materials, we have strong technical support and a customized service team. We have launched a series of special use to machining high hardness stone PCD tools, and hot sales to Italy, Poland, Spain, Portugal, Palestine, Pakistan, Israel and other countries.
