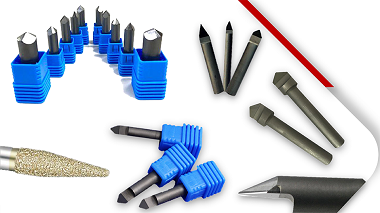

PCD Stone Tools
By strict three -time of quality testings from raw material to finished products, Halnn will ensure supply every product with great quality for clients in their hands
PCD stone Engraving Tools
Drawing | Order Code | Dia/D1 | Total Length/L1 | Angle/Kr | Platform / wide |
| E-6 | 6 mm | 40 mm | 30, 35, 40, 45 | 0.2, 0.3, 0.4, 0.5, 0.8, 1.0, 1.5 |
E-8 | 8 mm | 50 mm | 35, 40, 45, 60 | 0.3, 0.4, 0.5, 0.8 , 1.0. 1.5 |
E-10 | 10 mm | 70 mm | 35, 40, 45, 60 | 0.8 , 1.0. 1.5 |
E-12 | 12 mm | 75 mm | 35, 40, 45, 60 | 0.8 , 1.0. 1.5 |
Other sizes can also be provided according to your requirements |
PCD stone Carving Tools
NO. | Dia / D1 | Total Length/L1 | Angle/Kr | Platform/wide | Drawing |
C-6 | 6 | 40 mm | 35, 45, 55, 60 | 0.2, 0.4, 0.6, 1.0 |
|
C-8 | 8 | 50 mm | 35, 45, 55, 60 | 0.4, 0.6, 1.0 |
C-10 | 10 | 50 mm | 35, 45, 55, 60 | 0.4, 0.6, 1.0 |
C-12 | 12 | 60 mm | 35, 45, 55, 60 | 0.4, 0.6, 1.0 |
Other sizes can also be provided according to your requirements |
PCD Stone Milling Cutters
The PCD milling cutter for stone is applied to mill the groove at the bottom of engraving picture or letters of the stone, especially for the granite, marble and ceramic surface processing.
Drawing | NO | Dia / d1 | Tip Length / l1 | Shank Dia / d2 | Shank Dia / l2 |
| M4-30 | 4mm | 3 mm | 4mm | 30mm |
M6-30 | 6mm | 3 mm | 4mm | 30mm |
M7-35 | 7mm | 3 mm | 6mm | 35mm |
M8-35 | 8mm | 3 mm | 6mm | 35mm |
M9-40 | 9mm | 5 mm | 8mm | 40mm |
M10-40 | 10mm | 5 mm | 10mm | 40mm |
M12-45 | 12mm | 7 mm | 12mm | 45mm |
Other sizes can also be provided according to your requirements |
Brazed Diamond Stone Engraving Tools
Marble CNC Stone Diamond Engraving Tools Marble Cnc diamond engraving tools use high vacuum technology, characterised by sharp cutting, high efficiency, good wear resistance, it is the preferred tool for creating embossing and the best tool for writing large letters.
Flat head series: Used for clearing the bottom of material part.
Taper Ball Nose series: Fit for engraving, carving ball shape bottom, and make 3D effect ( three dimension).
Conical head series: Used for V Taper Shape engraving.
Main Features of Stone Diamond Engraving Tools
Diamond Engraving Bits are designed for edge details grinding and engraving application;
Widely used in engraving on soft stones and granite, hard stones, etc
Special shapes and sizes are available upon your request.
Good resistance and sharp cutting, high efficiency
Many Other abrasive material, all sizes, shapes, assortments are customized upon your specific request
Assortments of mounted points&burs are flexible.
Specification Of Diamond Engraving Bits
Diameter: 3-12mm
Shank: 6mm, 8mm, 10mm, 12mm
Total length: 60mm, 90mm, 120mm, 150mm
Professionally used for CNC machine, carving on marble, granite, ceramic etc.
Other non-standard sizes are customized upon your request!
