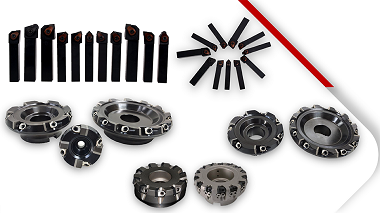

Tool holder for CBN inserts

Tool holder for CBN inserts

Full name: Tools holder for CBN inserts, machine tool holder, CBN Milling cutter, CBN turning holder

Tool holder series: External turning/Inner bore turning/Face milling

Tool holder square size: 20*20, 25*25, 32*32, 40*40 ect.

Click on the consulting

Product Description

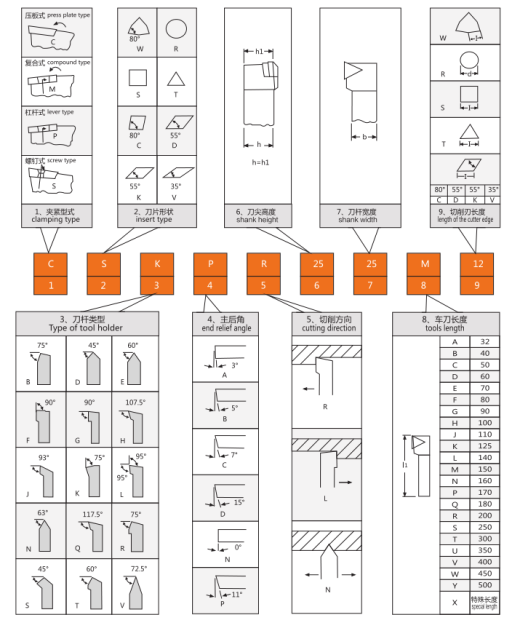

ISO Code Expression of Indexable External Turning Tool Holder

Indexable External Turning Tool Holder

External tool holder for Solid CBN insert

Arc tool holder for grooving solid RCMX insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	h1=h2	L2	b	L1	Matched insert
	CRDCN2020M06	20	30	20	150	RCMX06
	CRDCN2525M09	25	30	25	150	RCMX09
	CRDCN3232P12	32	35	32	170	RCMX12
	CRDCN4040S15	40	38	40	250	RCMX15
	CRDCN5050T20	50	38	50	300	RCMX20

Middle laying tool holder for Round CBN RNMN insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	h1=h2	L2	b	L1	Matched insert
	CRDNN2020M09	20	30	20	150	RNMN09
	CRDNN2525M12	25	30	25	150	RNMN12
	CRDNN3232P15	32	35	32	170	RNMN15
	CRDNN4040S20	40	38	40	250	RNMN20
	CRDNN5050T25	50	38	50	300	RNMN25

One side tool holder for Round solid CBN RNMN insert

Type	Dimension				Matched insert	Drawing
Type	h1=h2	L2	b	L1	Matched insert	Drawing
CRGNR/L2020M09	20	30	20	150	RNMN09
CRGNR/L2525M12	25	30	25	150	RNMN12
CRGNR/L3232P15	32	35	32	170	RNMN15
CRGNR/L4040S20	40	38	40	250	RNMN20
CRGNR/L5050T25	50	38	50	300	RNMN25

95°tool holder for C-Type solid CNMN CBN insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	h1=h2	L2	b	L1	Matched insert
	CCLNR/L2020M09	20	30	20	150	CNMN09
	CCLNR/L2525M12	25	30	25	150	CNMN12
	CCLNR/L3232P12	32	35	32	170	CNMN12
	CCLNR/L4040S12	40	38	40	250	CNMN12
	CCLNR/L5050T12	50	38	50	300	CNMN12

Middle laying tool holder for square solid CBN SNMN insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	h1=h2	L2	b	L1	Matched insert
	CSDNN2020M09	20	30	20	150	SNMN09
	CSDNN2525M12	25	30	25	150	SNMN12
	CSDNN3232P12	32	35	32	170	SNMN12
	CSDNN4040S15	40	38	40	250	SNMN15
	CSDNN5050T20	50	38	50	300	SNMN20

Front 75°tool holder for square solid CBN SNMN insert

Type	Dimension				Matched insert	Drawing
Type	h1=h2	L2	b	L1	Matched insert	Drawing
CSKNR/L2020M09	20	30	20	150	SNMN09
CSKNR/L2525M12	25	30	25	150	SNMN12
CSKNR/L3232P12	32	35	32	170	SNMN12
CSKNR/L4040S15	40	38	40	250	SNMN15
CSKNR/L5050T20	50	38	50	300	SNMN20

75°tool holder for square solid CBN SNMN insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	h1=h2	L2	b	L1	Matched insert
	CSRNR/L2020M09	20	30	20	150	SNMN09
	CSRNR/L2525M12	25	30	25	150	SNMN12
	CSRNR/L3232P12	32	35	32	170	SNMN12
	CSRNR/L4040S15	40	38	40	250	SNMN15
	CSRNR/L5050T20	50	38	50	300	SNMN20

83°tool holder for square solid CBN SNMN insert

Type	Dimension				Matched insert	Drawing
Type	h1=h2	L2	b	L1		Drawing
CSXNR/L2020M09	20	30	20	150	SNMN09
CSXNR/L2525M12	25	30	25	150	SNMN12
CSXNR/L3232P12	32	35	32	170	SNMN12
CSXNR/L4040S15	40	38	40	250	SNMN15
CSXNR/L5050T20	50	38	50	300	SNMN20

45°tool holder for square solid CBN SNMN insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	h1=h2	L2	b	L1	Matched insert
	CSSNR/L2020M09	20	30	20	150	SNMN09
	CSSNR/L2525M12	25	30	25	150	SNMN12
	CSSNR/L3232P12	32	35	32	170	SNMN12
	CSSNR/L4040S15	40	38	40	250	SNMN15
	CSSNR/L5050T20	50	38	50	300	SNMN20

95°tool holder for D-Type solid DNMN CBN insert

Type	Dimension				Matched insert	Drawing
Type	h1=h2	L2	b	L1	Matched insert	Drawing
CDLNR/L2020M11	20	30	20	150	DNMN11
CDLNR/L2525M11	25	30	25	150	DNMN11
CDLNR/L3232P11	32	35	32	170	DNMN11

Middle laying tool holder for Round CBN RCMN insert

Type	Dimension				Matched insert	Drawing
Type	h1=h2	L2	b	L1	Matched insert	Drawing
CRDCN2020M09	20	30	20	150	RCMN09
CRDCN2525M12	25	30	25	150	RCMN12
CRDCN3232P12	32	35	32	170	RCMN12
CRDCN4040S15	40	38	40	250	RCMN15
CRDCN5050T15	50	38	50	300	RCMN15

95°External tool holder for W-Type solid CBN WNMN insert

Type	Dimension				Matched insert	Drawing
Type	h1=h2	L2	b	L1	Matched insert	Drawing
CWLNR/L2525M08	25	33	25	150	WNMN08
CWLNR/L3232P08	32	35	32	170	WNMN08

Internal tool holder for solid CBN insert

75°tool holder for square solid CBN SNMN insert

Drawing	Type	Dimension				Matched insert
Drawing	Type	H	L2	L1	φD	Matched insert
	S25T-CSKNR/L-09	23	42	300	25	SNMN09
	S32T-CSKNR/L-12	30	45	300	32	SNMN12
	S40T-CSKNR/L-12	37	50	300	40	SNMN12
	S32U-CSKNR/L-15	30	45	350	32	SNMN15
	S40U-CSKNR/L-20	37	50	350	40	SNMN20

95°tool holder for rhombus solid CBN CNMN insert

Type	Dimension				Matched insert	Drawing
Type	H	L2	L1	φD	Matched insert	Drawing
S25T-CCLNR/L-12	23	42	300	25	CNMN12
S32T-CCLNR/L-12	30	45	300	32	CNMN12
S40T-CCLNR/L-12	37	50	300	40	CNMN12
S32U-CCLNR/L-12	30	45	350	32	CNMN12
S40U-CCLNR/L-12	37	50	350	40	CNMN12

Milling Cutters/Holders Series

φ63 Milling cutter φ125 Milling cutter φ160 Milling cutter

Diameter 63 Diameter 125 Diameter 160

Note: Customers provide drawing or size requirements, Halnn will provide customized services.
