Product Overview

GLC PRECISION provides high-performance honing heads designed for precision bore finishing across various industries. Our honing heads are suitable for a wide range of honing machines, including Nagel, Sunnen, Gehring, Nissin, MAS, Fuji, and other leading brands. With machining capabilities ranging from 17mm to 600mm, these honing heads ensure superior geometric accuracy, high cutting efficiency, and excellent surface finish.

Technical Specifications

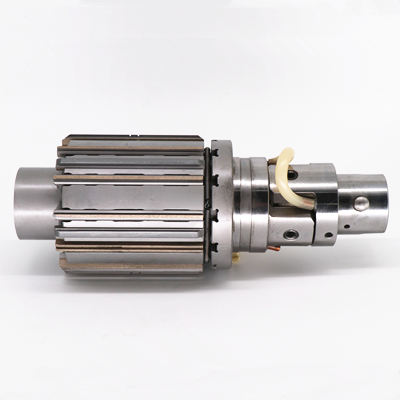

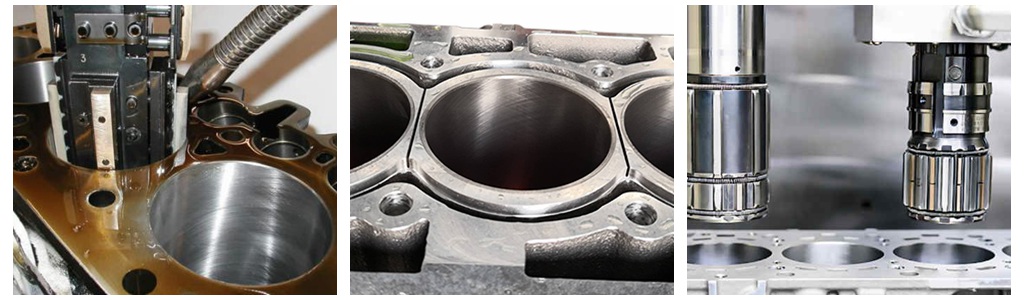

Automotive Engine Cylinder Block Honing Head Functions

1. Online automatic measurement with automatic compensation function.

2. Dual-feed honing, enabling both cross-hatch honing and plateau honing functions.

This series of honing heads has been successfully integrated with imported honing machines (Gehring, Nagel).

Applications

GLC PRECISION honing heads are widely used in industries such as automotive, aerospace, shipbuilding, engineering machinery, and military manufacturing. They are ideal for finishing cylinder barrels, valve holes, sleeve holes, and other precision components, including:

·Automotive engine block holes and cylinder sleeve holes

·Hydraulic cylinders and AC engine cylinder blocks

·Marine machinery components

·Aerospace hydraulic systems

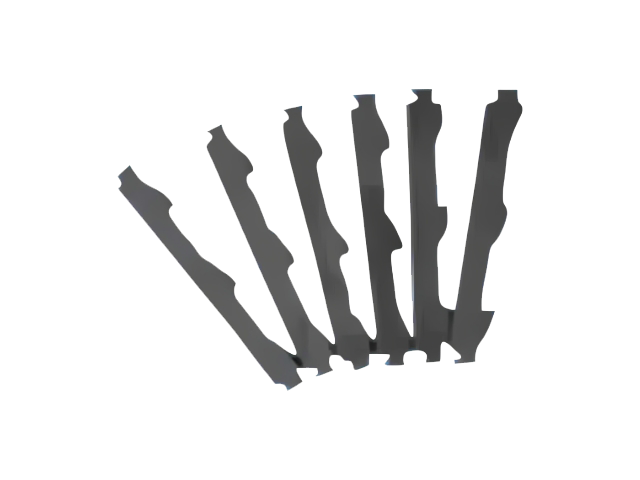

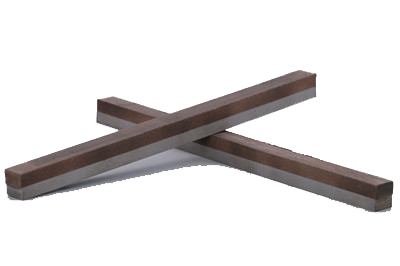

Honing Stone Options

To achieve superior honing performance, GLC PRECISION provides high-quality honing stones tailored for different materials:

·Diamond honing stones: Ideal for honing cast iron, aluminum-silicon alloys, Babbitt alloys, bronze, brass, glass, ceramics, and similar materials.

·CBN (Cubic Boron Nitride) honing stones: Suitable for honing tool steel, hardened steel, high-temperature alloy steel, high-chromium cast iron, and other superhard materials.

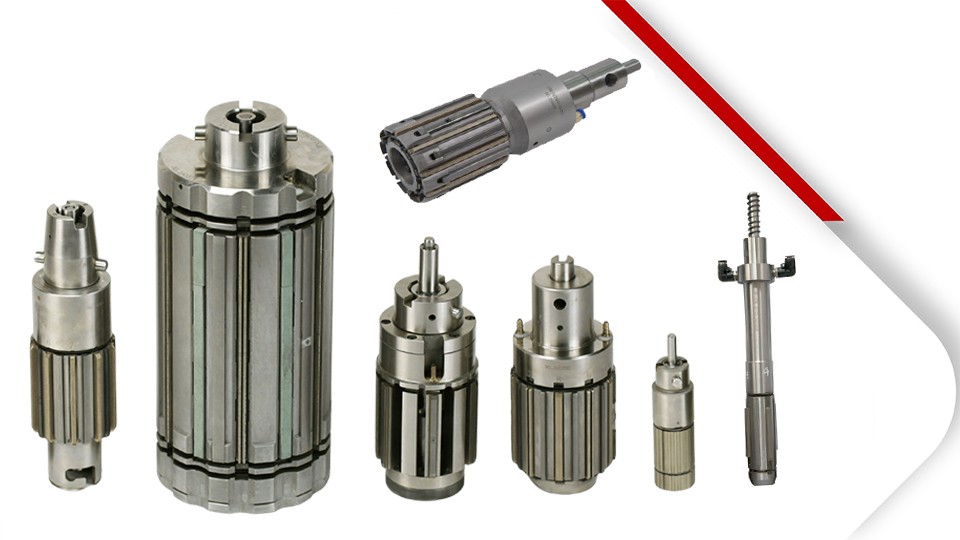

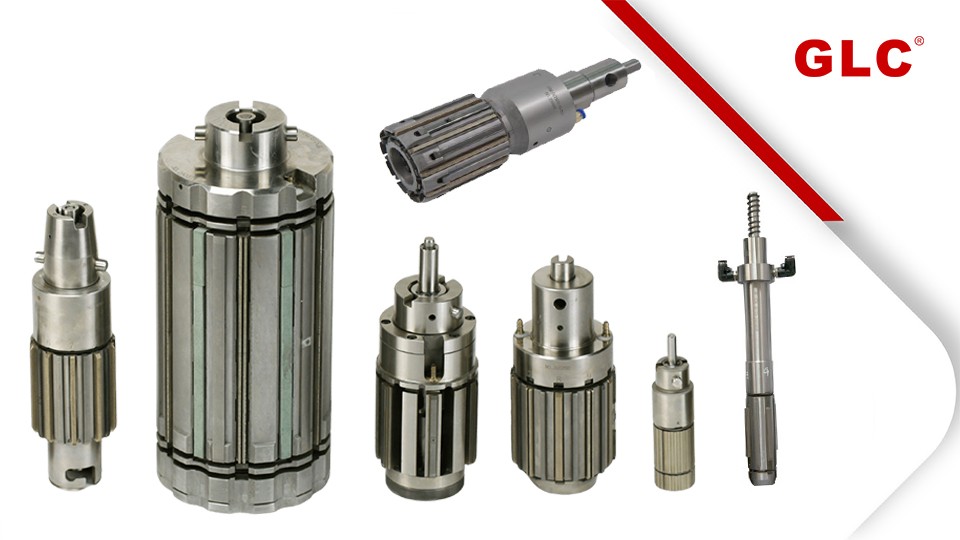

Product Categories

1. Multi-Stone Honing Tool with Grooves for Horizontal Honing Machines

   Designed for through holes and blind-hole bores, this honing tool supports diameters from 25.15mm to 152mm. It is compatible with various horizontal honing machines. To ensure optimal selection, customers should provide details on their honing equipment, machining range, and specific working conditions.

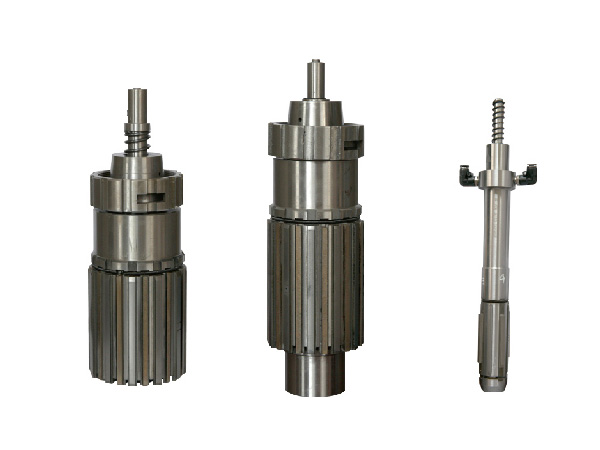

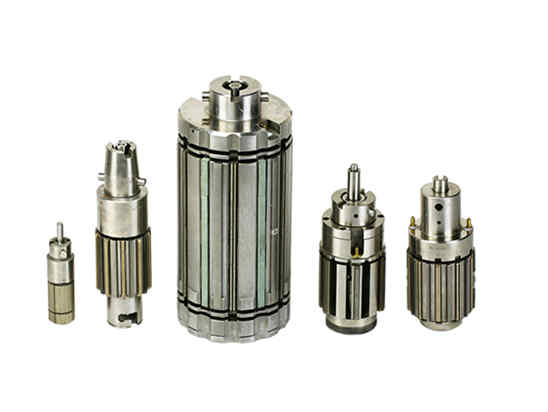

2. Cylindrical Multi-Stone Honing Tool for Vertical Honing Machines

   This honing tool is engineered for use with Nagel, Sunnen, Hunnen, and other vertical honing machines, offering a machining range of 17mm to 600mm. It is available in single-stage, two-stage, and pneumatic gauging types, making it adaptable to different machining environments.

   Note: Two-stage honing heads are particularly suitable for marine machinery parts with bore diameters up to ø400mm.

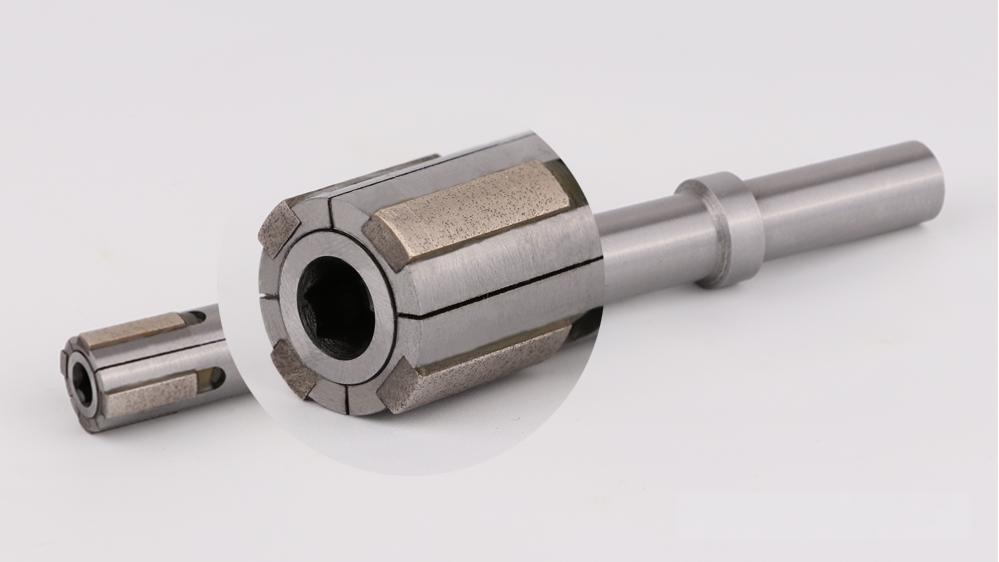

3. Cylindrical Multi-Stone Honing Tool for Horizontal Honing Machines

   Specifically developed for Sunnen and other brand-name horizontal honing machines, this honing tool is designed for honing bores within a diameter range of 17mm to 152.4mm.

For more details or to request a quote, contact GLC PRECISION today!
