In the world of gear manufacturing, precision and efficiency are paramount. The tools used in shaping gears play a crucial role in determining the quality and performance of the final product. Among these tools, the indexable gear shaper cutter stands out for its innovation and effectiveness. Halnn, a leading provider of cutting-edge machining tools, offers top-of-the-line indexable gear shaper cutters that cater to the diverse needs of modern industries.

What is an Indexable Gear Shaper Cutter?

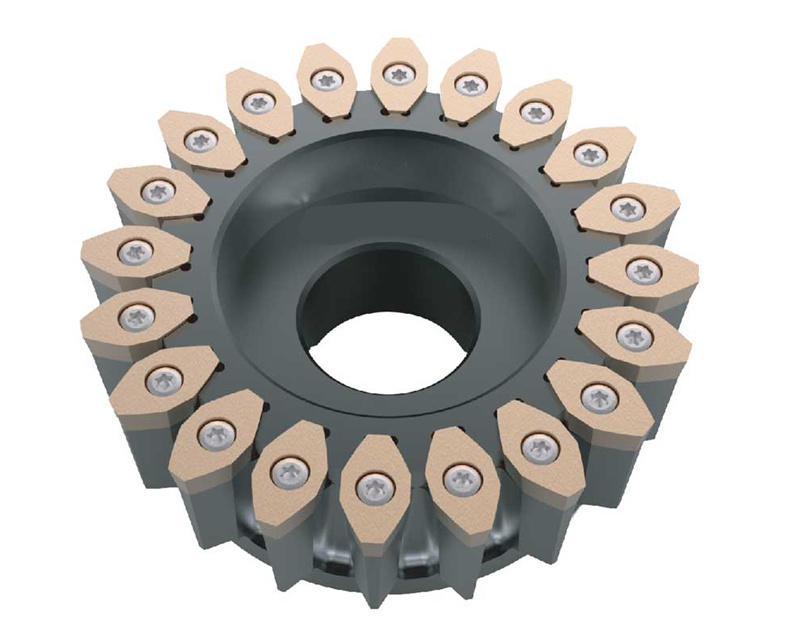

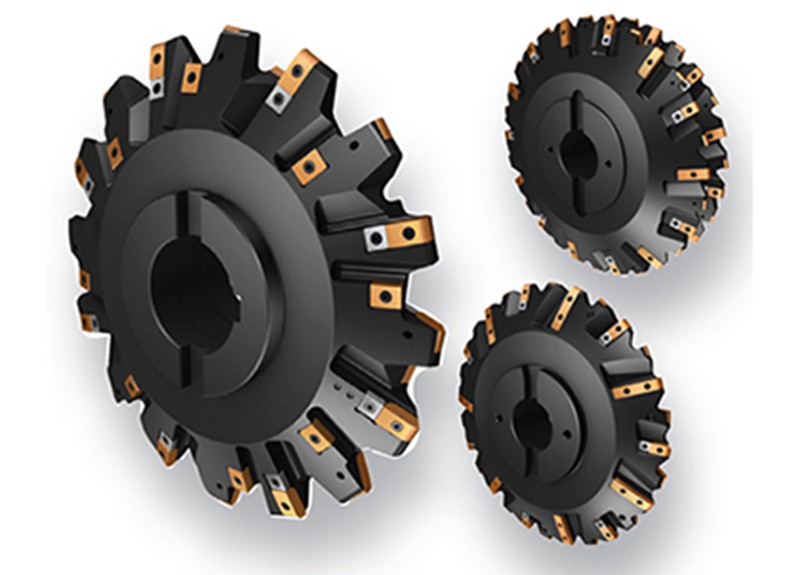

An indexable gear shaper cutter is a specialized tool used in the shaping of gears. Unlike traditional solid shaper cutters, which require periodic resharpening, indexable gear shaper cutters utilize replaceable carbide inserts. These inserts can be easily replaced when worn out, ensuring continuous high performance without the need for frequent maintenance.

Advantages Over Traditional Shaper Cutters

• Higher Cutting Speeds: Allows for faster production rates.

• Extended Tool Life: Carbide inserts are more durable and can be replaced easily.

• Consistent Precision: Maintains high accuracy throughout its use.

• Reduced Downtime: Quick insert changes minimize interruptions in production.

Advantages of Using Indexable Gear Shaper Cutters

Indexable gear shaper cutters offer several distinct advantages, making them an ideal choice for gear manufacturing:

Efficiency

The use of indexable inserts allows for higher cutting speeds and feed rates, significantly reducing cycle times. This efficiency translates into increased production capacity and faster turnaround times.

Cost-Effectiveness

While the initial investment in indexable gear shaper cutters may be higher, the long-term savings are substantial. The ability to replace only the inserts, rather than the entire cutter, lowers overall tooling costs. Additionally, the longer tool life reduces the frequency of replacements.

Precision

Indexable gear shaper cutters provide consistent cutting performance, resulting in high-quality gear shapes. The precision of these tools ensures that gears meet strict industry standards and perform reliably in their applications.

Reduced Downtime

The ease of replacing inserts means that maintenance can be performed quickly, minimizing production interruptions. This reduced downtime is crucial in maintaining efficient manufacturing operations.

Applications of Indexable Gear Shaper Cutters

Indexable gear shaper cutters are used across a wide range of industries due to their versatility and reliability:

Automotive Industry

In the automotive sector, the precision and durability of gears are critical. Indexable gear shaper cutters are essential in producing high-quality gears for transmissions, differentials, and other critical components.

Aerospace Industry

The aerospace industry demands the highest levels of precision and reliability. Indexable gear shaper cutters meet these stringent requirements, ensuring the performance and safety of aircraft components.

Heavy Machinery Manufacturing

Large machinery requires robust and accurate gears. Indexable gear shaper cutters provide the necessary durability and precision, making them ideal for heavy machinery manufacturing.

Other Industrial Applications

Beyond automotive and aerospace, indexable gear shaper cutters are used in various industries where high-quality gears are crucial. This includes sectors like energy, marine, and industrial equipment manufacturing.

Halnn's Innovations in Indexable Gear Shaper Cutters

At Halnn, we are committed to advancing gear manufacturing technology. Our indexable gear shaper cutters incorporate several innovative features that set them apart:

Advanced Coatings

Our inserts are coated with advanced materials that enhance wear resistance and cutting efficiency. These coatings extend the life of the inserts and improve overall performance.

Optimized Geometry

The design of our cutters and inserts is optimized to reduce cutting forces and improve tool life. This optimization results in smoother operations and higher-quality gear shaping.

High-Quality Materials

Halnn uses only the best materials in our cutters and inserts, ensuring durability and consistent performance. Our commitment to quality materials guarantees that our tools meet the highest industry standards.

Customer Success Stories

Our innovations have led to numerous success stories across various industries. Clients have reported significant improvements in production efficiency, gear quality, and overall cost savings thanks to Halnn's indexable gear shaper cutters.

How to Choose the Right Indexable Gear Shaper Cutter

Selecting the appropriate gear shaper cutter for your needs involves several considerations:

Material Compatibility

Ensure that the cutter and inserts are suitable for the material you are shaping. Different materials may require specific coatings or geometries to achieve optimal performance.

Cutter Size and Geometry

Match the cutter size and geometry to the gear size and required tolerances. The right size and shape are crucial for achieving precise and accurate gear shapes.

Specific Application Needs

Consider the specific requirements of your application, such as cutting speed, feed rate, and surface finish quality. Tailor your choice of cutter to meet these needs effectively.

Maintenance and Care for Indexable Gear Shaper Cutters

Proper maintenance is essential to maximize the life and performance of your cutters:

Regular Inspection

Frequently inspect the inserts and cutter body for signs of wear or damage. Replace worn inserts promptly to maintain cutting quality.

Proper Usage

Follow recommended cutting parameters to avoid excessive wear on the inserts. Using the correct speeds and feeds ensures optimal performance and longevity.

Troubleshooting Common Issues

Address issues like vibration, poor surface finish, or uneven wear as soon as they arise. Troubleshooting these problems early can prevent more significant issues and extend the life of your cutters.

Future Trends in Gear Shaper Cutter Technology

The future of gear shaping technology is bright, with several trends set to enhance performance and efficiency:

Advances in Materials and Coatings

New developments in materials and coatings will continue to improve the durability and cutting performance of inserts. These advances will further extend tool life and reduce maintenance needs.

Innovative Designs

Ongoing research and development will lead to more efficient and precise cutter designs. These innovations will enhance the quality and speed of gear manufacturing processes.

Impact of Industry 4.0 and Automation

The integration of smart technologies and automation in gear shaping will revolutionize the industry. These advancements will increase efficiency, reduce human error, and enable more flexible manufacturing processes.

FAQs About Indexable Gear Shaper Cutters

1. What is an indexable gear shaper cutter?

An indexable gear shaper cutter is a specialized tool used in the shaping of gears. It features replaceable carbide inserts that can be easily changed when worn, ensuring continuous high performance and reducing the need for frequent maintenance.

2. What are the advantages of using an indexable gear shaper cutter over traditional shaper cutters?

Indexable gear shaper cutters offer several benefits, including higher cutting speeds, extended tool life, consistent precision, and reduced downtime due to the ease of replacing worn inserts rather than the entire cutter.

3. How do indexable gear shaper cutters improve efficiency in gear manufacturing?

The use of replaceable inserts allows for higher cutting speeds and feed rates, which significantly reduce cycle times and increase production capacity. This efficiency translates into faster turnaround times and higher productivity.

4. What materials can indexable gear shaper cutters work with?

Indexable gear shaper cutters are versatile and can work with a variety of materials, including high alloy steels, stainless steels, and other tough materials typically used in gear manufacturing.

5. How often do the inserts in an indexable gear shaper cutter need to be replaced?

The frequency of insert replacement depends on several factors, including the material being cut, cutting speeds, feed rates, and the specific application. Regular inspection will help determine the optimal replacement schedule to maintain cutting performance.

6. Can indexable gear shaper cutters achieve the same precision as traditional solid cutters?

Yes, indexable gear shaper cutters can achieve high precision, especially with advancements in insert design and coating technologies. These cutters are capable of meeting stringent industry standards for gear accuracy and surface finish.

7. What are the maintenance requirements for indexable gear shaper cutters?

Maintenance involves regular inspection of the inserts and cutter body for signs of wear or damage, replacing worn inserts promptly, and following recommended cutting parameters to ensure optimal performance and longevity.

8. What industries benefit most from using indexable gear shaper cutters?

Industries that require high-quality gears, such as automotive, aerospace, heavy machinery manufacturing, and various other industrial sectors, benefit greatly from the efficiency and precision offered by indexable gear shaper cutters.

9. How do I choose the right indexable gear shaper cutter for my application?

Consider factors such as material compatibility, cutter size and geometry, specific application needs, and the required precision and surface finish quality. Consulting with experts like those at Halnn can also help in selecting the most suitable cutter.

10. What innovations has Halnn introduced in indexable gear shaper cutters?

Halnn has introduced advanced coatings, optimized geometry, and high-quality materials in their indexable gear shaper cutters. These innovations enhance wear resistance, cutting efficiency, and overall tool performance, ensuring superior results in gear manufacturing.

Conclusion

Indexable gear shaper cutters are transforming the gear manufacturing industry by offering unparalleled efficiency, precision, and cost savings. Halnn is at the forefront of this innovation, providing high-quality tools that meet the highest standards of modern manufacturing. For more information on how Halnn's indexable gear shaper cutters can benefit your operations, visit our website or contact our sales team.
