Introduction of PCD standard Inserts:

PCD standard inserts are cutting tools used in machining operations, primarily in turning, milling, and drilling processes. These inserts are crafted from polycrystalline diamond particles bonded together under high pressure and high temperature, resulting in an exceptionally hard and wear-resistant cutting material. PCD inserts typically feature a diamond layer on a carbide substrate, combining the hardness of diamond with the toughness of carbide.

Avantages of PCD standard inserts:

The significance of PCD standard inserts lies in their numerous advantages over traditional cutting tools:

• Superior Wear Resistance: PCD inserts have the advantages of outstanding resistance to wear and abrasion, making them ideal for machining abrasive materials like composites, aluminum alloys, and non-ferrous metals.

• High Cutting Speeds: Due to their exceptional hardness and thermal conductivity, PCD inserts can withstand high cutting speeds without compromising on tool life or surface finish quality.

• Longer Tool Life: PCD inserts offer significantly longer tool life compared to conventional carbide inserts, reducing tool changeovers, downtime, and production costs.

• Enhanced Surface Finish: The sharpness and precision of PCD inserts result in superior surface finishes, reducing the need for secondary finishing operations and enhancing part quality.

Composition of PCD standard inserts

PCD (Polycrystalline Diamond) inserts are engineered using a sophisticated process that involves synthesizing diamond particles and binding them together with a metal matrix. The composition typically consists of:

1. Diamond Particles: These are ultra-fine diamond crystals, often in the range of nanometers to micrometers in size. These particles are selected for their high hardness and wear resistance.

2. Metal Matrix: The diamond particles are bonded together within a metal matrix, usually cobalt-based or nickel-based. This matrix serves to hold the diamond particles in place and provide structural integrity to the insert.

The manufacturing process involves subjecting the diamond particles and metal matrix to high pressure and high temperature conditions, allowing them to bond together in a solid mass. The result is a dense, homogeneous material with diamond particles uniformly distributed throughout the insert.

Applications of PCD Standard Inserts

Some common industries where PCD inserts are utilized include aerospace, automotive, mold and die, woodworking, and electronics manufacturing. These inserts are favored for their ability to deliver high precision, excellent surface finish, and extended tool life, making them indispensable in modern machining operations.

Specific Machining Operations:

PCD standard inserts excel in a wide range of machining operations, including:

• Turning: PCD inserts are used for turning operations to machine cylindrical components with high precision and surface quality. They can effectively cut materials such as aluminum, copper, and non-ferrous alloys.

• Milling: In milling operations, PCD inserts are employed to create intricate shapes and contours on workpieces. They are capable of high-speed milling and deliver superior performance in materials like carbon fiber-reinforced plastics (CFRP) and fiberglass.

• Drilling: PCD inserts are utilized for drilling operations to create precise holes in various materials, including composites, ceramics, and non-ferrous metals. They offer excellent hole quality, dimensional accuracy, and resistance to tool wear.

• Reaming: PCD inserts are also used for reaming operations to achieve tight tolerances and superior surface finishes in bores. They are suitable for reaming applications in aluminum, titanium, and other difficult-to-machine materials.

Advantages in Different Materials:

PCD standard inserts offer several advantages when machining different materials:

• Non-ferrous Metals: PCD inserts provide exceptional performance when machining non-ferrous metals such as aluminum, copper, and brass. They deliver high cutting speeds, excellent surface finish, and prolonged tool life, making them ideal for aerospace and automotive applications.

• Plastics: PCD inserts are well-suited for machining plastics due to their low friction and heat generation. They produce clean cuts with minimal burrs and prevent material melting or deformation, ensuring high-quality finished parts.

• Abrasive Composites: PCD inserts excel in machining abrasive composite materials like CFRP, GFRP, and MMCs (Metal Matrix Composites). They offer superior wear resistance and edge retention, enabling efficient machining of these challenging materials while maintaining dimensional accuracy and surface integrity.

In summary, PCD standard inserts are versatile tools that find applications across a wide range of industries and materials. Their ability to deliver precision, efficiency, and extended tool life makes them indispensable for modern machining operations.

Design and Geometry of PCD Standard Inserts

Standard Insert Shapes and Sizes:

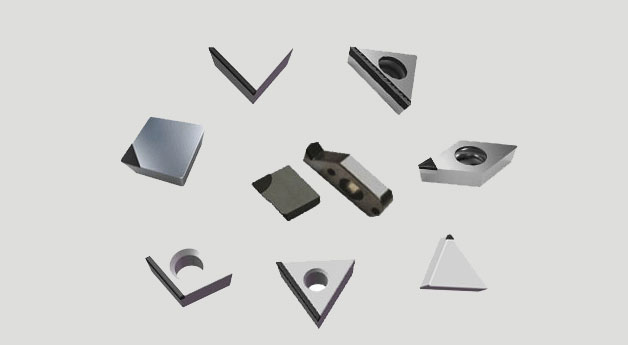

PCD (Polycrystalline Diamond) standard inserts are available in a variety of shapes and sizes to accommodate different machining requirements. Some common insert shapes include square, round, triangular, and rhombic, each tailored for specific machining operations. Additionally, inserts come in various sizes, typically specified by dimensions such as length, width, and thickness. Standard sizes are widely available in the market, but custom sizes can also be fabricated to meet specific application needs.

Geometry Considerations:

The geometry of PCD standard inserts plays a crucial role in their performance and effectiveness during machining. Key geometry considerations include:

• Rake Angle: The rake angle determines the direction of the cutting force and the efficiency of chip removal. Positive rake angles are suitable for soft materials, while negative rake angles are preferred for harder materials.

• Clearance Angle: The clearance angle ensures that the cutting edge does not rub against the workpiece, minimizing friction and heat generation. Proper clearance angle selection depends on factors such as material type, cutting speed, and depth of cut.

• Cutting Edge Preparation: The cutting edge of PCD inserts can be prepared in various ways to optimize cutting performance. Common edge preparations include honing, chamfering, and radius cutting, each serving to enhance cutting efficiency, reduce cutting forces, and improve surface finish.

Customization Options:

PCD standard inserts can be customized to meet specific machining requirements, offering flexibility and versatility in tool design. Customization options include:

• Special Profiles: Inserts can be tailored to feature complex profiles or unique geometries to accommodate specific part features or machining challenges.

• Chipbreaker Designs: Chipbreakers can be integrated into the insert geometry to control chip formation and improve chip evacuation during machining, particularly in difficult-to-machine materials.

• Coating Applications: In addition to PCD cutting edges, inserts can be coated with various coatings to enhance wear resistance, reduce friction, or improve thermal stability, depending on the application.

By carefully considering insert design and geometry, manufacturers can optimize machining performance, achieve higher productivity, and extend tool life, ultimately enhancing overall machining efficiency and quality.

Selection Criteria for PCD Standard Inserts

Choosing the right PCD (Polycrystalline Diamond) standard inserts is essential for achieving optimal machining performance and efficiency. Several key factors should be considered during the selection process to ensure compatibility with the machining material, conditions, and cost considerations.

1. Material Compatibility:

Different machining materials require specific PCD insert grades and compositions to achieve the desired cutting performance and tool life. Consider the following material-related factors:

• Hardness: Select inserts with the appropriate diamond particle size and distribution to match the hardness of the workpiece material.

• Abrasiveness: Choose inserts with higher abrasion resistance for machining abrasive materials like composites or ceramics.

• Chemical Stability: Ensure that the insert material is chemically compatible with the workpiece material to prevent chemical reactions and tool wear.

2. Machining Conditions:

The operating conditions of the machining process significantly impact insert selection. Consider the following machining parameters:

• Cutting Speed: Select inserts capable of withstanding the required cutting speeds without compromising tool life or cutting edge integrity.

• Feed Rate: Choose inserts that can handle the desired feed rates while maintaining dimensional accuracy and surface finish.

• Depth of Cut: Determine the maximum depth of cut needed and select inserts with adequate strength and stability to withstand cutting forces.

3. Cost Considerations:

While PCD inserts may have a higher initial cost compared to conventional tooling, they offer significant long-term benefits in terms of tool life and machining efficiency. Consider the following cost-related factors:

• Initial Investment: Evaluate the upfront cost of purchasing PCD inserts relative to the machining budget and expected return on investment.

• Tool Life: Assess the expected tool life of PCD inserts under specific machining conditions and compare it with alternative tooling options.

• Machining Efficiency: Consider the overall productivity gains and cost savings associated with using PCD inserts, including reduced downtime, higher throughput, and improved part quality.

By carefully evaluating material compatibility, machining conditions, and cost considerations, manufacturers can select the right PCD standard inserts to optimize machining performance, extend tool life, and maximize cost-efficiency in their operations.

Maintenance and Care of PCD Standard Inserts

Proper maintenance and care are essential for maximizing the lifespan and performance of PCD (Polycrystalline Diamond) standard inserts. By following recommended procedures for cleaning, inspection, edge honing, refurbishment, storage, and handling, manufacturers can ensure that their PCD inserts deliver consistent results and remain in optimal condition throughout their usage.

1. Cleaning and Inspection:

Regular cleaning and inspection help identify any signs of wear, damage, or contamination on PCD inserts. Follow these steps:

• Use a soft brush or compressed air to remove chips, debris, and coolant residues from the insert surface and chip breaker areas.

• Inspect the inserts under magnification for signs of chipping, edge wear, or coating damage. Pay attention to cutting edges, rake faces, and flank surfaces.

• If necessary, use a mild solvent or cleaning solution to remove stubborn residues, ensuring not to damage the insert or its coating.

2. Edge Honing and Refurbishment:

To extend the useful life of worn PCD inserts, consider edge honing or refurbishment techniques:

• Utilize diamond honing tools or abrasive wheels to sharpen or hone the cutting edges of PCD inserts. This process helps restore edge sharpness and cutting performance.

• For inserts with significant wear or damage, consider refurbishment services offered by reputable suppliers. These services may include regrinding, re-coating, or re-tipping of the inserts to restore their original geometry and functionality.

3. Storage and Handling:

• Proper storage and handling are crucial for preventing damage, contamination, or degradation of PCD inserts:

• Store PCD inserts in clean, dry environments with stable temperature and humidity conditions to prevent corrosion or oxidation.

• Use protective packaging, such as plastic containers or foam inserts, to shield inserts from physical damage during storage and transportation.

• Handle PCD inserts with care to avoid dropping, banging, or scratching, which can cause micro-fractures or surface defects that compromise performance.

• When handling inserts, use clean gloves or handling tools to minimize contact with skin oils, dirt, or contaminants that can degrade the insert's cutting performance.

Frequently Asked Questions about PCD Standard Inserts (FAQs)

Q1: What are PCD standard inserts, and how are they different from other cutting tools?

A1: PCD (Polycrystalline Diamond) standard inserts are cutting tools used in machining applications to achieve high precision and efficiency. Unlike conventional inserts, PCD inserts feature diamond particles bonded together in a matrix material, offering superior hardness, wear resistance, and thermal conductivity.

Q2: What are the advantages of using PCD standard inserts?

A2: PCD standard inserts offer several advantages, including:

• Exceptional wear resistance, allowing for prolonged tool life and reduced downtime.

• High cutting speeds and feed rates, leading to improved productivity.

• Enhanced surface finish and dimensional accuracy, contributing to superior part quality.

• Compatibility with a wide range of materials, including non-ferrous metals, plastics, and composites.

Q3: What industries and applications are suitable for PCD standard inserts?

A3: PCD standard inserts find applications in various industries, including aerospace, automotive, woodworking, and electronics manufacturing. They are ideal for machining materials such as aluminum, copper, fiberglass, carbon fiber, and ceramics. Common applications include turning, milling, drilling, and reaming operations.

Q4: How do I select the right PCD standard insert for my machining application?

A4: When selecting PCD standard inserts, consider factors such as:

• Material being machined

• Machining operation (turning, milling, drilling, etc.)

• Cutting conditions (speed, feed rate, depth of cut)

• Insert geometry and edge preparation

Q5: What is the recommended maintenance routine for PCD standard inserts?

A5: Regular maintenance is essential for prolonging the life of PCD standard inserts. It includes cleaning, inspection, edge honing, and proper storage. Inspect inserts for wear, damage, or contamination, and clean them regularly using mild solvents or cleaning solutions. Edge honing can be used to restore sharpness, and inserts should be stored in clean, dry environments to prevent damage.

Q6: Can PCD standard inserts be reconditioned or refurbished?

A6: Yes, PCD standard inserts can be refurbished through regrinding, re-coating, or re-tipping processes offered by specialized suppliers. Refurbishment can extend the useful life of worn or damaged inserts, restoring their cutting performance and geometry.

Q7: What are the cost considerations associated with PCD standard inserts?

A7: While PCD standard inserts may have a higher upfront cost compared to conventional inserts, their superior wear resistance and longer tool life often result in lower overall machining costs. Consider the total cost of ownership, including initial investment, tool life, machining efficiency, and part quality, when evaluating the cost-effectiveness of PCD inserts.
